Editing the groups of sequences

The Edit>Groups command opens the "Group properties" dialog purposed for editing the groups of sequences.

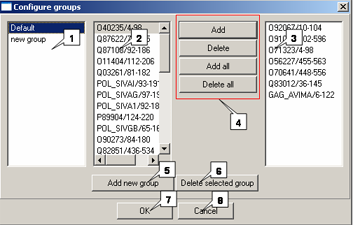

1. List of groups. 2. List 1 (sequences included in a group). 3. Buttons controlling lists 1 and 2. 4. List 2 (sequences excluded from a group). 5. Button for adding a new group. 6. Button for removing a group. 7. Button for applying changes. 8. Button for closing the window.

The list of groups

The list of groups contains the identifiers of groups and information on a number of sequences in a group.

The "Add new group" button is purposed for adding a new group to the list. On pressing the button the "Create new group" dialog appears. Define the name of a group in this box and press the "OK" button.


Figure 3.2.1.2.

The "Delete selected group" button is purposed for removing the selected groups from the list.

Comment. By default, the list always contains the single group with the name "Default" that originally (i.e. before editing) includes all sequences of the loaded alignment.

Lists of sequences

To edit a group select it in the list. In the list 1 the identifiers of sequences included in this group will be displayed. The list 2 contains the identifiers of sequences not included in any of the groups.

The "Add", "Delete", "Add all" and "Delete all" buttons are purposed for operating the lists 1 and 2.

Buttons for operating the "Group properties" dialog:
