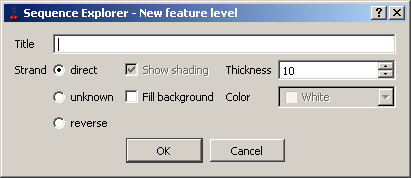

"New feature level" dialog
The dialog allows to create new feature level and can be called out by:
- The "Feature>New feature level" command from the main menu.
In the dialog the following objects can be specified:
-
Name of the layer in the "Title" field;
-
Layer direction:
-
Strand:direct - forward direction;
-
Strand:unknown - unknown direction;
-
Strand:reverse - reverse direction;
On the layer direction its location on the Map may depend.
For each nucleotide sequence, layers with the forward orientation are above and ones with the backward
orientation - below the grey line representing a sequence.
-
Height of layer in the Thickness field (in pixels)
-
Shadow drops on layer image by the "Show shading" checkbox.
-
Color - Level background color.
The new feature level will be added at the end of the list of feature levels in a parent node.
