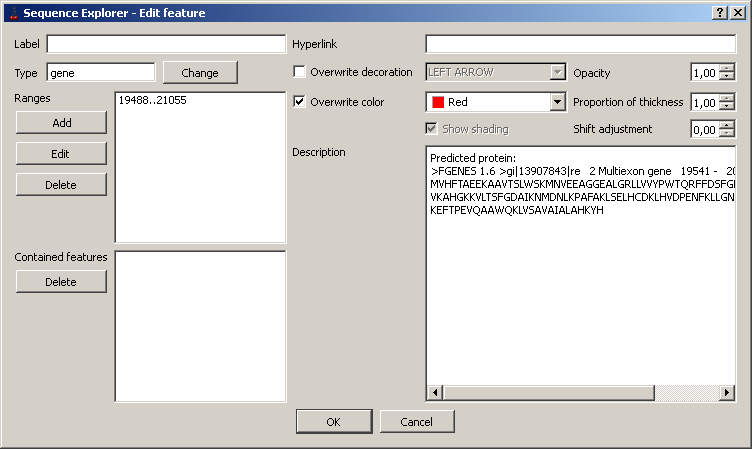

"Edit feature" dialog

The dialog allows to edit feature and can be called out by:
- The "Feature>Edit feature" command from the main menu.
- The Edit feature command from feature pop-up menu.
- The mouse double-click on feature ID in List of sequences or on feature image on the Map.

In the dialog the following items can be specified:
• The "Label" field contains the feature name.
• The "Type" field contains the layout type. The "Change" button calls out the "Feature type" dialog that allows to choose the type of feature.
• The "Ranges" field allows to set the range of feature.
• The "Add" button calls out the "New feature range" dialog for setting up new range coordinates. New range will be added to the "Ranges" field.
• The "Edit" button calls out the "Edit feature range" dialog for changing the selected range coordinates.
• The "Delete" button is used to delete selected range.
• The "Contained features" field contains the list of subfeatures that are contained in current general feature (e.g. CDS in operon).
• The "Hyperlink" field contains the link to approptiate web resource.
• The "Overwrite color" checkbox. If the box is checked in, the color of feature will correspond to that in list near the box; otherwise the color will be the same as that selected in the "Options" dialog at the "Features types" tab.
• The "Show shading" checkbox regulates the shadow dropping on the feature image.
• The "Overwrite decoration" checkbox. If the box is checked in, the shape of feature will correspond to that in list near the box; otherwise the shape will be the same as that selected in the "Options" dialog at the "Features types" tab.
• The "Opacity" option allows to set the image transparency grade.
• The "Proportion of thickness" option allows to choose the feature height.
• The "Shift adjustment" option allows to choose the shift of the image regarding a horizontal axis of layer.
